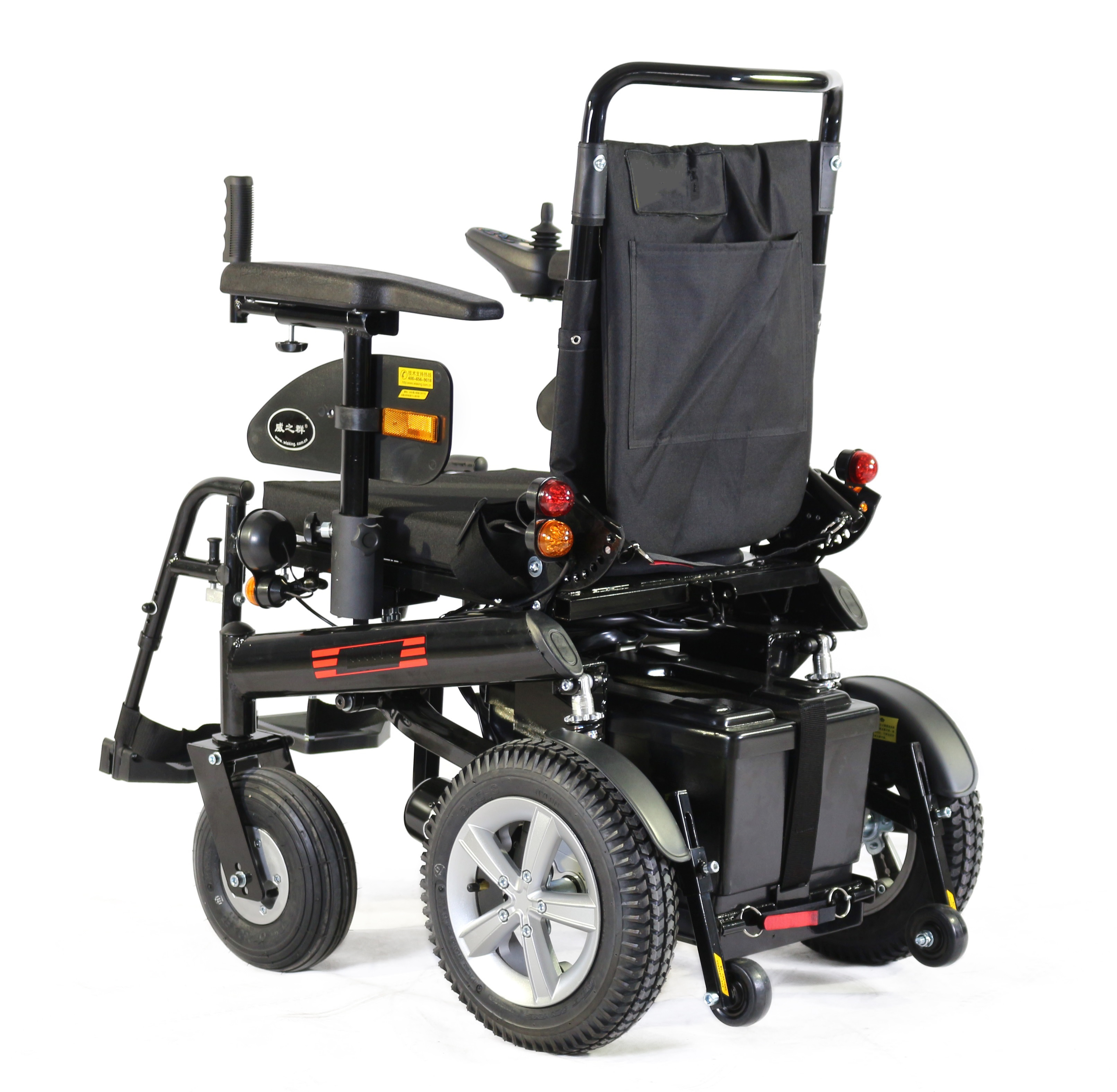

R1022 Normal power wheelchair
Item Description
Dimension 110*65*97cm
Seat width-depth-height 40 or 45cm-45cm-52cm
Wheels Front 9' air tire
Rear 14' air tire
Weight Capacity 200KGS

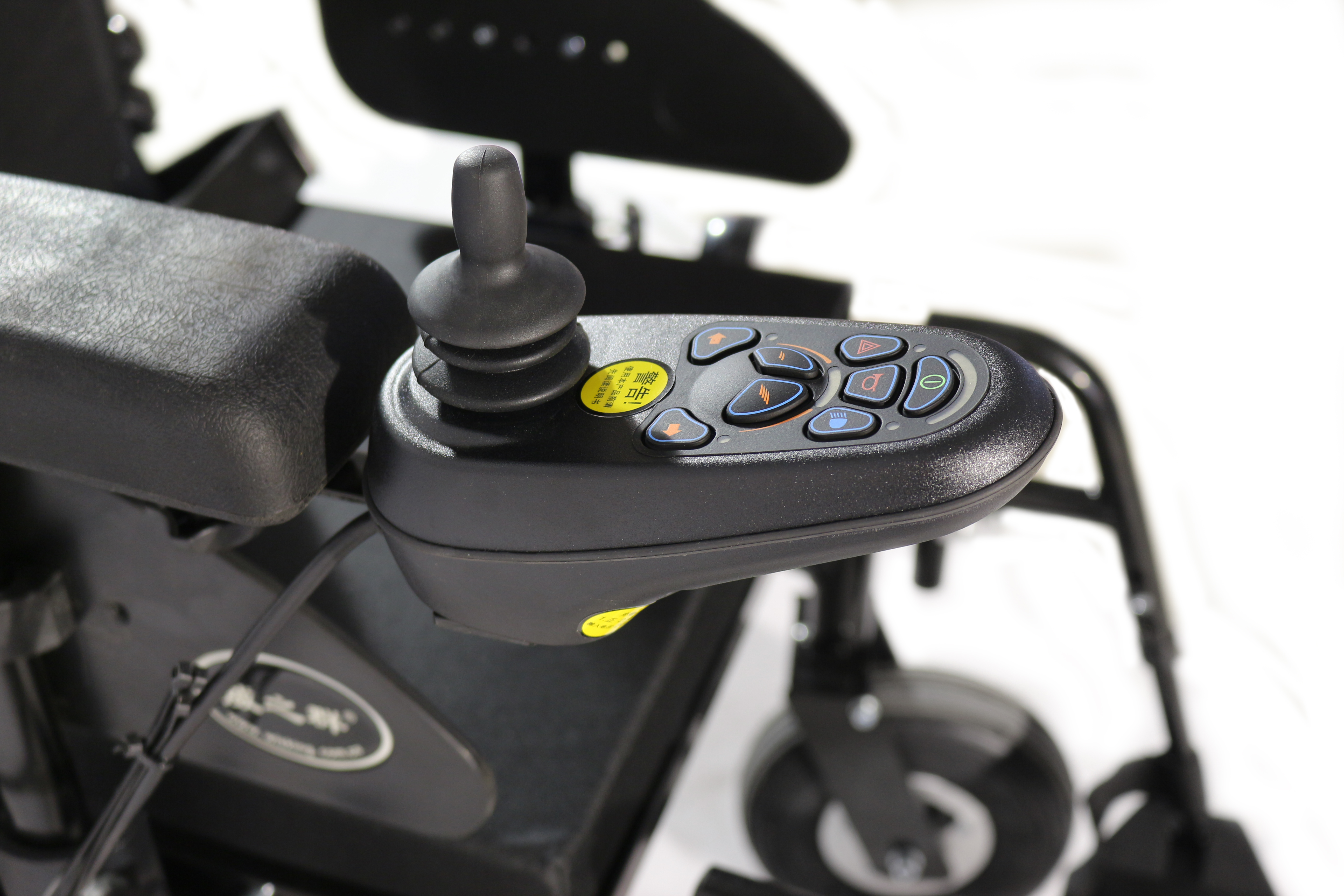

Controller 50A
Motor 24V DC 320W
Battery Capacity 12V 55Ah
weight 11.2kg*2
Dimension 19.5*13*18cm*2
Charger 24V x 5AMP
Recharge time 6-8hrs
Incline capability 8-15 degrees
Max speed 8-10KM/H
Range 30±5km
Suspension Front without
Rear without
Net weight(without batteries) 72 kg
Gross weight 142 kg
Package number 1 ctns
size 112*72*95 cm
Dimension 110*65*97cm
Seat width-depth-height 40 or 45cm-45cm-52cm
Wheels Front 9' air tire
Rear 14' air tire
Weight Capacity 200KGS
Controller 50A
Motor 24V DC 320W
Battery Capacity 12V 55Ah
weight 11.2kg*2
Dimension 19.5*13*18cm*2
Charger 24V x 5AMP
Recharge time 6-8hrs
Incline capability 8-15 degrees
Max speed 8-10KM/H
Range 30±5km
Suspension Front without
Rear without
Net weight(without batteries) 72 kg
Gross weight 142 kg
Package number 1 ctns
size 112*72*95 cm
